POS Credit Card Options

Previous topic Next topic JavaScript is required for the print function

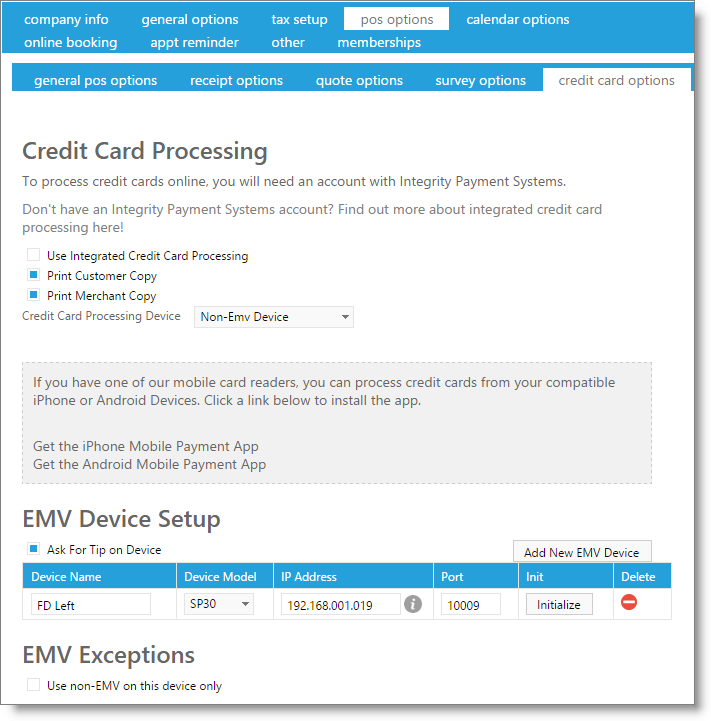

ClickImage

companysettings_pos_cc_03

Integrated Credit Card Processing



To process credit cards through Envision Cloud online, you will need to sign up for a merchant account with one of our credit card processors. You can request processing setup  from your Envision Cloud subscription management page or by selecting the link above.



Print Customer / Merchant Copy



Select the receipt type(s) to print when completing a credit card transaction.



Credit Card Processing Device



Select from EMV or Non-EMV device. EMV is specific to using credit card chip technology. If you select EMV Device here, you will need to configure the  setup below.





EMV Device Setup





Ask For Tip on Device



Selecting this box will ask the client for the tip amount when a credit or debit card type is chosen as the payment type in the Sales Register.



Add New EMV Device



Click this button to add a new EMV device to the list.



Device Name



Enter a name for the EMV device. Most often, you will use the name of the computer where the device is connected.



Device Model



Choose the device model from the selection.



IP Address



Enter the IP address of the device.



Port



The port number should read "10009".



Initialize Button



Once the previous fields have been entered, select this button to verify the device setup.



Delete



Select this option to remove the corresponding device.
